Suspension UV LED Lamp S3840-4K

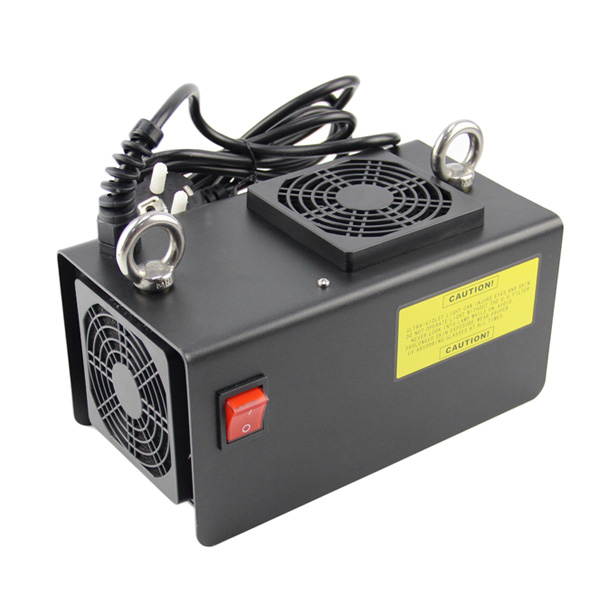

suspension uv led lamp

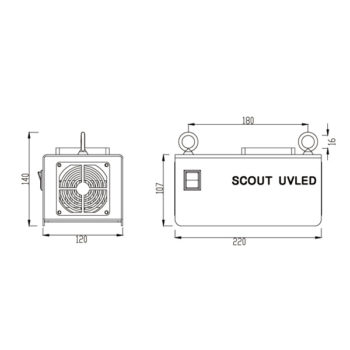

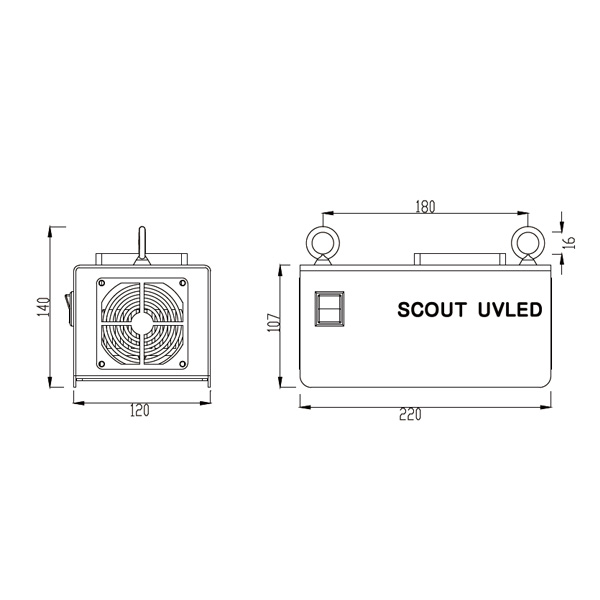

suspension uv led lamp size
  • S3840-4K
  • Contact Us

S3840-4K

S3840-4K UV LED Lamp

UV LED Lamp Type:Suspension type
UV Intensity at 38cm (15 in):>4000uW/cm²
Visible light emission:<20 lux
UV-A Coverage Area at 38cm (15 in):380*400mm
Peak Wavelength:365nm (UVA)
Stability of UV intensity:>90%
Input Voltage:AC110V or AC220V, 50/60Hz
Output Power:UV LED: 40W (8PCSx5W)
Product Size: 220mm (W) *120mm (D) * 140mm (H)
Weight:3.6kg

Contact Us

Click the right button for more product details

Product Images
