Built-in Battery Rechargeable Hand-held UV LED Lamps CJ100 Series

hand-held ndt uv led lamp

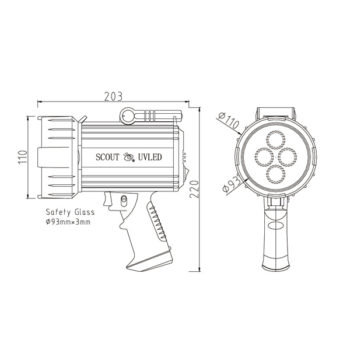

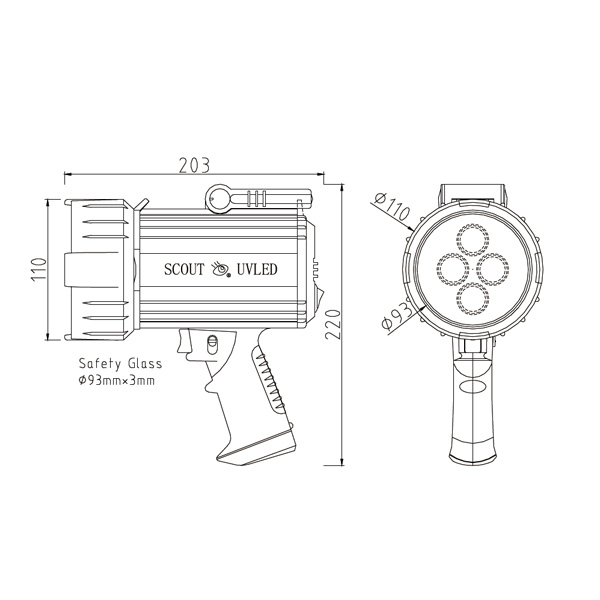

black light size
  • CJ100-8K
  • CJ100-10K
  • CJ100X-10K

CJ100-8K

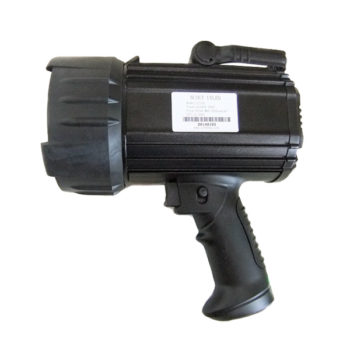

CJ100-8K Handheld NDT UV LED Lamp

UV LED Lamp Type:Built-in battery, rechargeable handheld type.
With UV/white led light dual illumination functions, one-handed switching
UV Intensity at 38cm (15 in):8000uW/cm²
White LED Light (visible light):Max 1500lux
UV-A Coverage Area at 38cm (15 in):diameter of about 200mm
Peak Wavelength:365nm (UVA)
Stability of UV intensity:>90%
Two power supply modes:Rechargeable Li-ion battery and pluggable 100-240V AC adapter.
Output Power:UV LED: 9W
White LED: 3W
Product Size: 203mm (W) * 110mm (D) * 220mm (H)
Weight:995g (with battery)
Charging Time:3-4 hours
Battery Capacity:5800mAh, 12.6V
Running Time:Battery Powered: UV LED 5-6 hours or White LED 16 hours
Adapter Powered: Continuously Running

CJ100-10K

CJ100-10K Handheld NDT UV LED Lamp

UV LED Lamp Type:Built-in battery, rechargeable handheld type.
With UV/white led light dual illumination functions, one-handed switching
UV Intensity at 38cm (15 in):10000uW/cm²
White LED Light (visible light):Max 1500lux
UV-A Coverage Area at 38cm (15 in):diameter of about 200mm
Peak Wavelength:365nm (UVA)
Stability of UV intensity:>90%
Two power supply modes:Rechargeable Li-ion battery and pluggable 100-240V AC adapter.
Output Power:UV LED: 9W
White LED: 3W
Product Size: 203mm (W) * 110mm (D) * 220mm (H)
Weight:995g (with battery)
Charging Time:3-4 hours
Battery Capacity:5800mAh, 12.6V
Running Time:Battery Powered: UV LED 5-6 hours or White LED 16 hours
Adapter Powered: Continuously Running

CJ100X-10K

CJ100X-10K Handheld NDT UV LED Lamp

UV LED Lamp Type:Built-in battery, rechargeable handheld type.
With dedicated UV-A pass filter
UV Intensity at 38cm (15 in):10000uW/cm²
Visible light emission:<20 lux
UV-A Coverage Area at 38cm (15 in):diameter of about 200mm
Peak Wavelength:365nm (UVA)
Stability of UV intensity:>90%
Two power supply modes:Rechargeable Li-ion battery and pluggable 100-240V AC adapter.
Output Power:UV LED: 12W
Product Size: 203mm (W) * 110mm (D) * 220mm (H)
Weight:995g (with battery)
Charging Time:3-4 hours
Battery Capacity:5800mAh, 12.6V
Running Time:Battery Powered: UV LED 5-6 hours
Adapter Powered: Continuously Running

Check here for more product detail images
